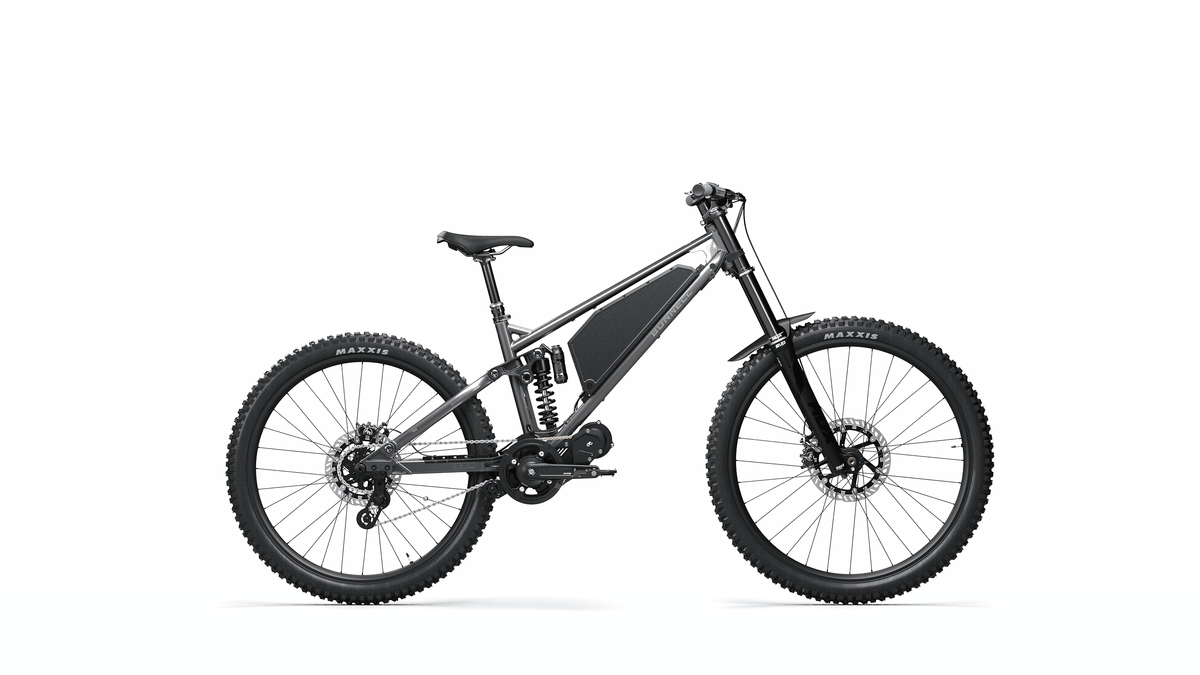

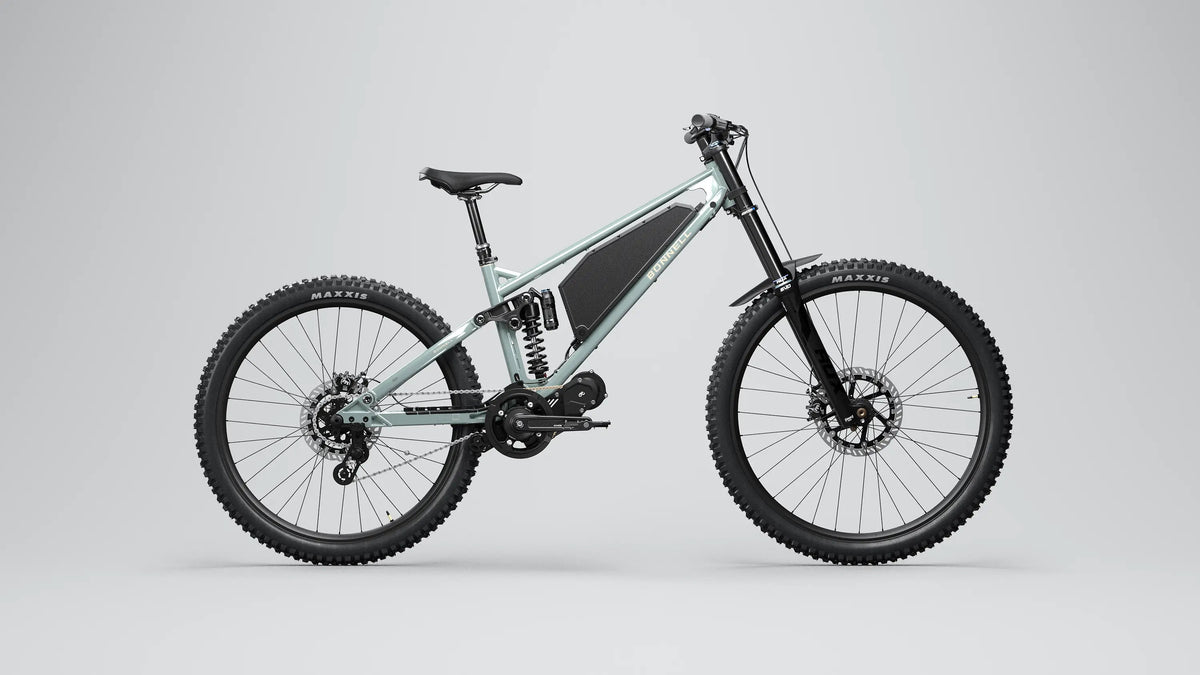

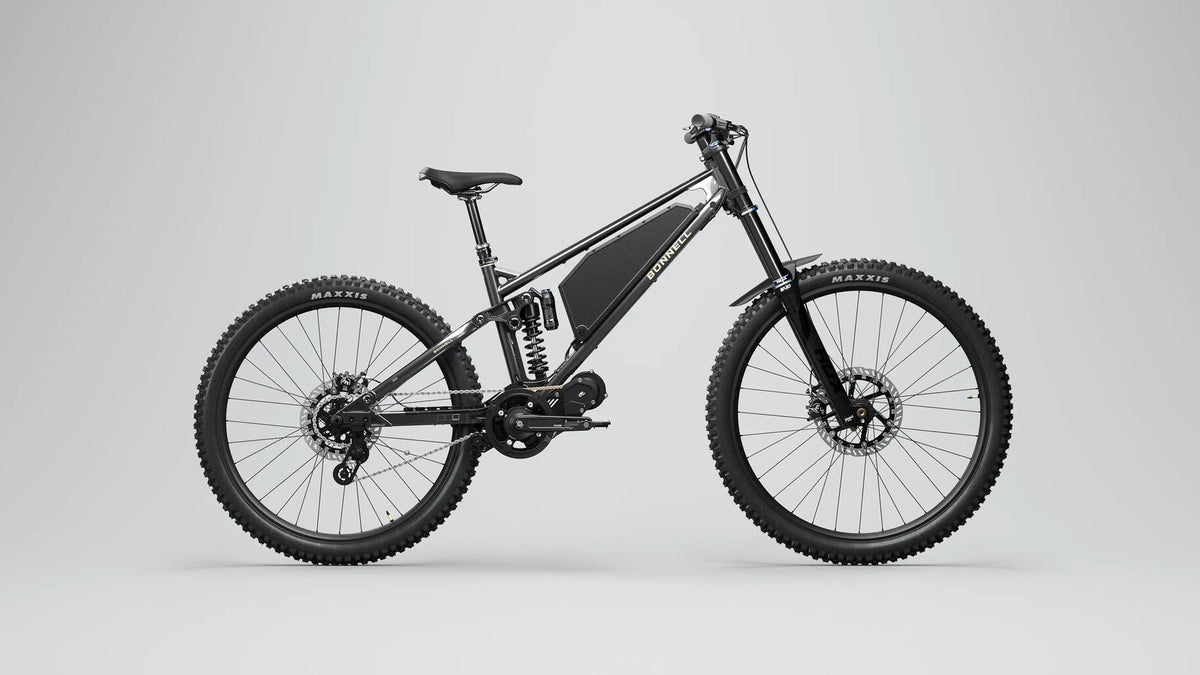

The Bonnell 775 MX is now available in the UK from Patriot Bikes Wakefield, bringing an exciting new high-performance electric off-road machine to UK riders.

Designed to combine the agility and suspension performance of a downhill mountain bike with the power of a lightweight electric dirt bike, the Bonnell 775 MX delivers up to 6,000W peak power and 280Nm of torque at the crank, while weighing approximately 34kg.

At the heart of the bike is the CYC X1 Pro Gen 4 drive system, paired with a high-capacity 65V 1300Wh removable battery. Premium components include Suntour RUX 38 RC+ dual-crown forks, Suntour Voro Coil rear suspension, Magura MT5 four-piston brakes and a 29”/27.5” mullet wheel setup.

Available from Patriot Bikes Wakefield with finance available, part exchange, UK dealer support and Fast UK Delivery.

The Bonnell 775 MX isn’t simply another conventional electric mountain bike.

Its combination of a lightweight chassis, serious suspension, full-twist throttle, torque-sensing pedal assistance and up to 6,000W peak power creates a machine designed for riders wanting significantly more performance from an electric off-road bike.

Whether you’re searching for the Bonnell 775 MX in the UK, checking the Bonnell 775 MX UK price, looking for a Bonnell UK dealer or simply researching one of the most interesting lightweight electric machines available, Patriot Bikes can help.

Visit our Wakefield showroom or order with Fast UK Delivery.

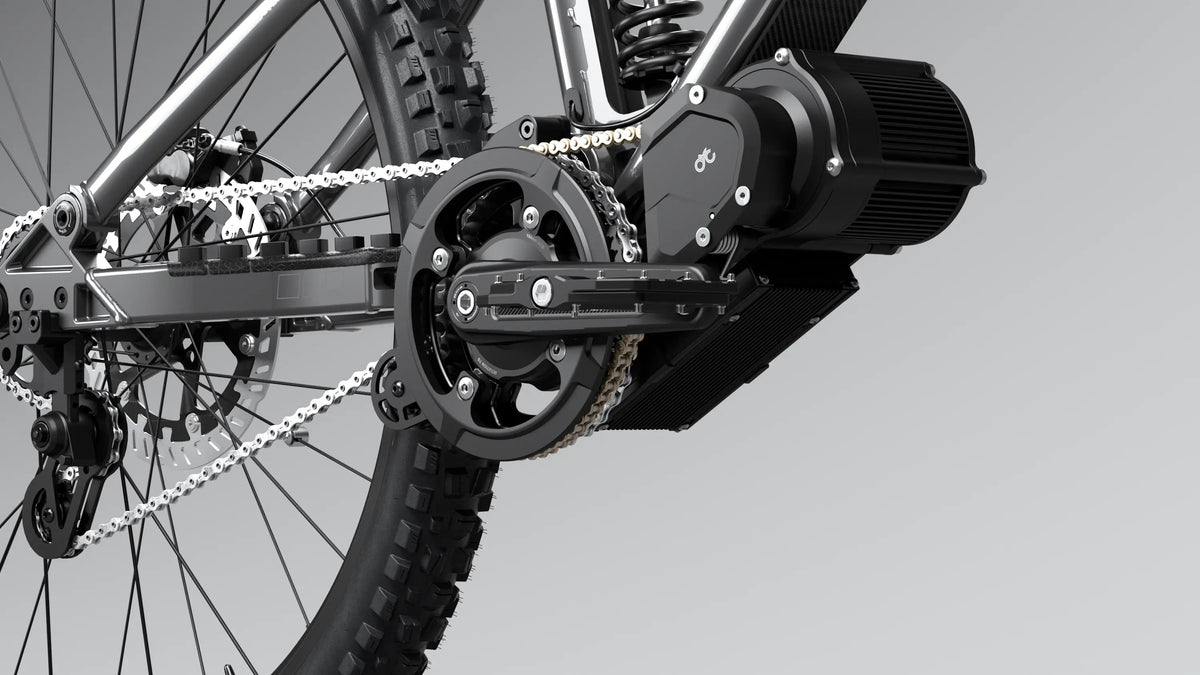

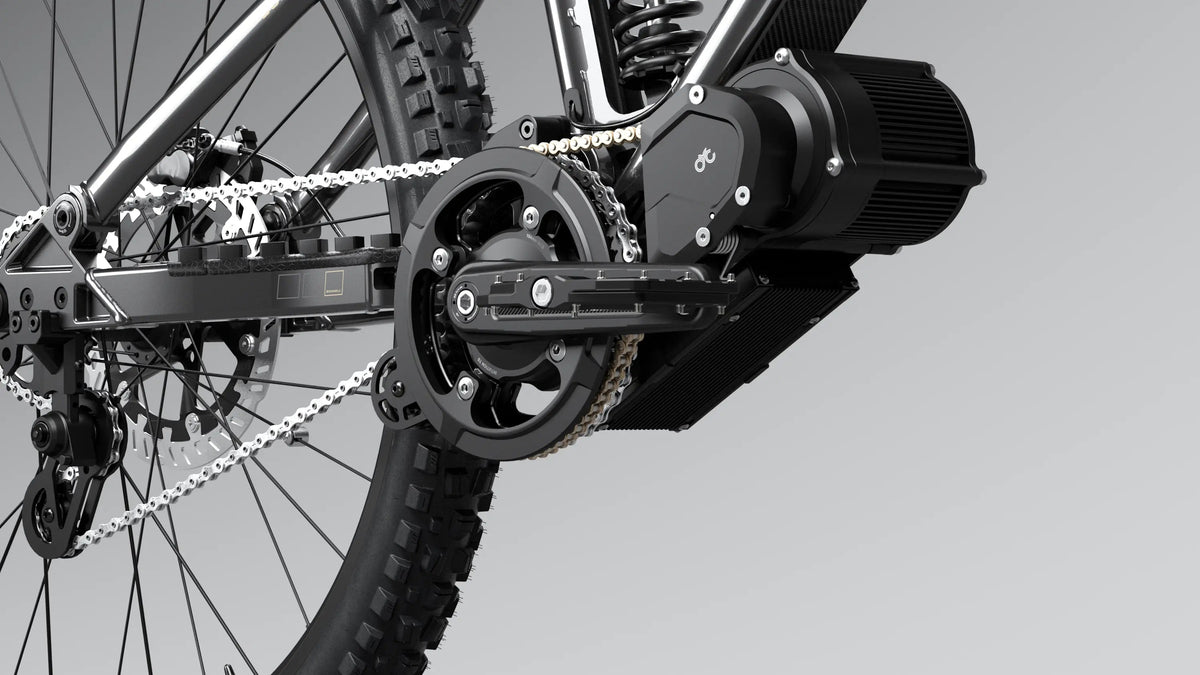

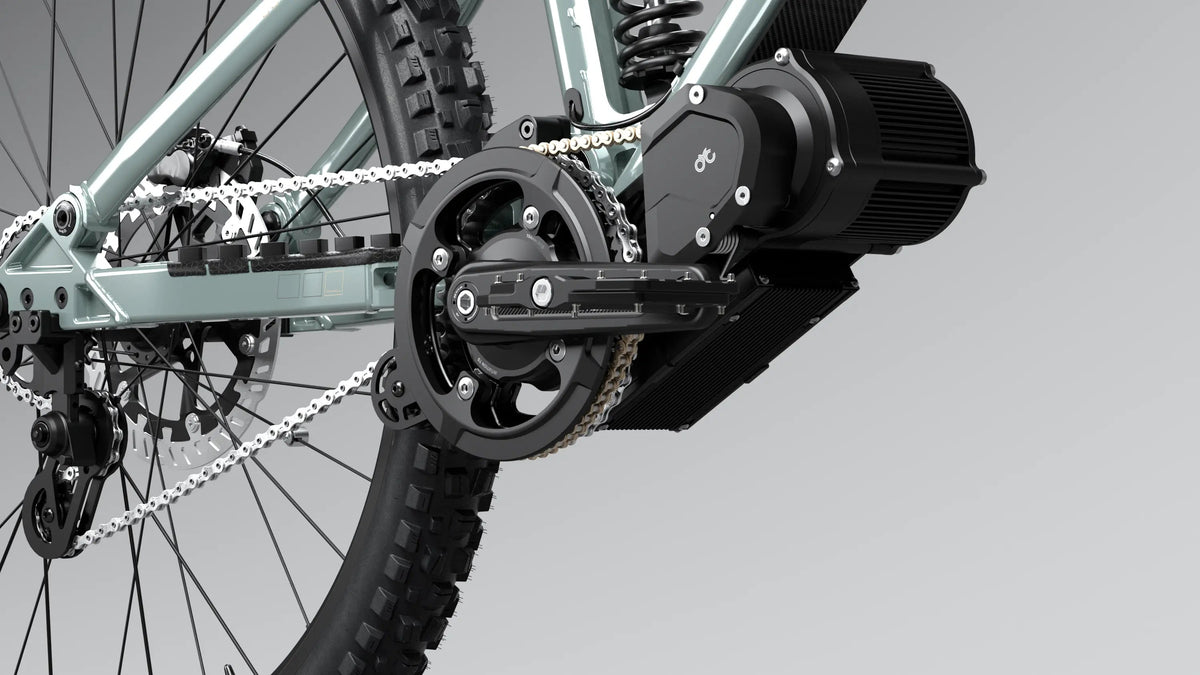

At the heart of the Bonnell 775 MX is the CYC X1 Pro Gen 4 drive system.

This high-performance system produces up to:

The integrated torque sensor allows the system to respond to rider input when using pedal assistance, while the full-twist throttle provides another way of accessing the bike’s performance.

This means the character of the 775 MX can change considerably depending on how it’s ridden and configured.

The Bonnell 775 MX combines both pedal assistance and throttle control.

A Lekkie Pacemaker full-twist throttle is fitted, while the motor’s torque-sensing pedal-assist system responds to rider input through the pedals.

The Bonnell Ride Control App also allows compatible power and assistance settings to be adjusted, giving riders greater control over how the bike delivers its performance.

Power comes from the CYC A65 Series 1300Wh battery.

The high-capacity 65V battery uses Samsung 50S cells and features an aluminium enclosure designed to help with heat dissipation.

An advanced dual-layer Battery Management System monitors important parameters including temperature, charging and current.

The battery is removable, allowing it to be taken out of the bike or swapped where required.

Despite its substantial 1300Wh capacity, Bonnell states that the battery can reach a full charge in under four hours using the supplied charger.

Actual charging times can vary depending on battery state, temperature and other conditions.

Bonnell quotes an approximate riding range of:

Actual range will depend heavily on how the bike is ridden. Terrain, rider weight, gradients, temperature, tyre pressures, power mode, throttle use and pedal assistance can all affect the distance achievable from a charge.

Riding aggressively at maximum power will naturally produce considerably different results from riding predominantly with pedal assistance.

One of the most impressive aspects of the Bonnell 775 MX is its power-to-weight proposition.

The complete bike weighs approximately:

That relatively low weight is a major part of what separates the 775 MX from many heavier electric dirt bikes. Rather than relying purely on outright power, the Bonnell platform combines substantial electric performance with a chassis intended to remain agile, responsive and manageable on demanding terrain.

With its standard gearing, Bonnell quotes approximately:

Alternative sprockets can change the balance between acceleration, low-speed torque and maximum speed. Bonnell currently quotes approximately 40mph / 65km/h with a 22T sprocket, while larger sprockets sacrifice some maximum speed in favour of greater low-speed torque.

Actual speed will vary depending on gearing, rider, terrain, conditions and bike setup.

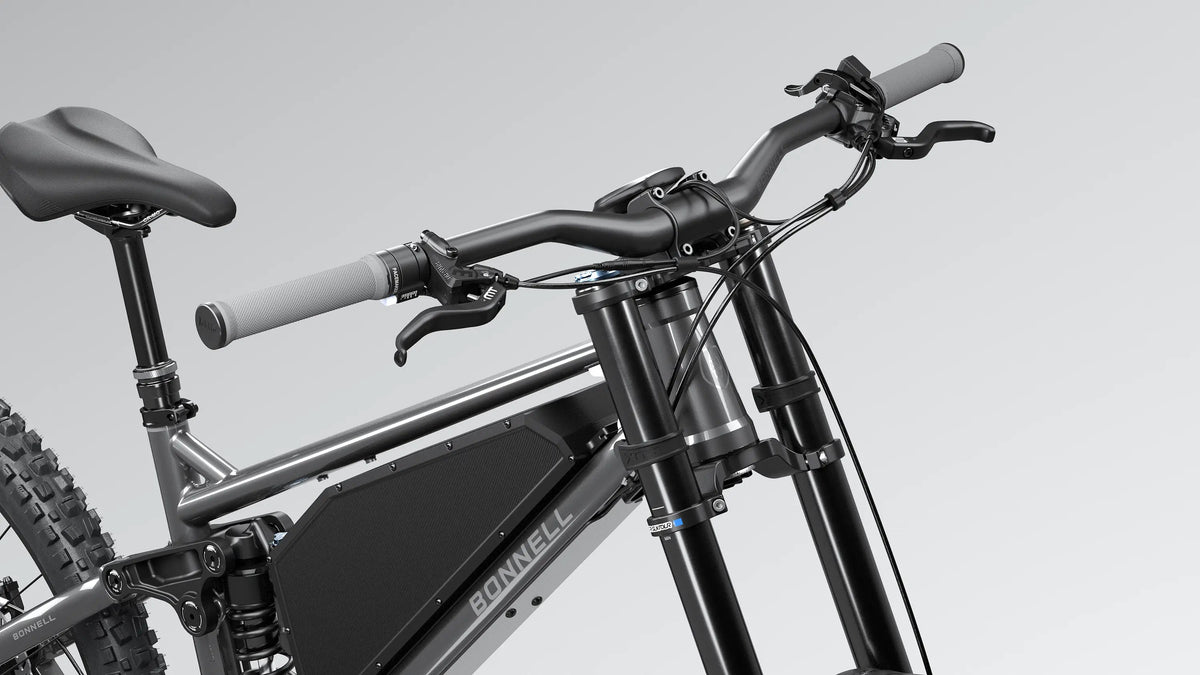

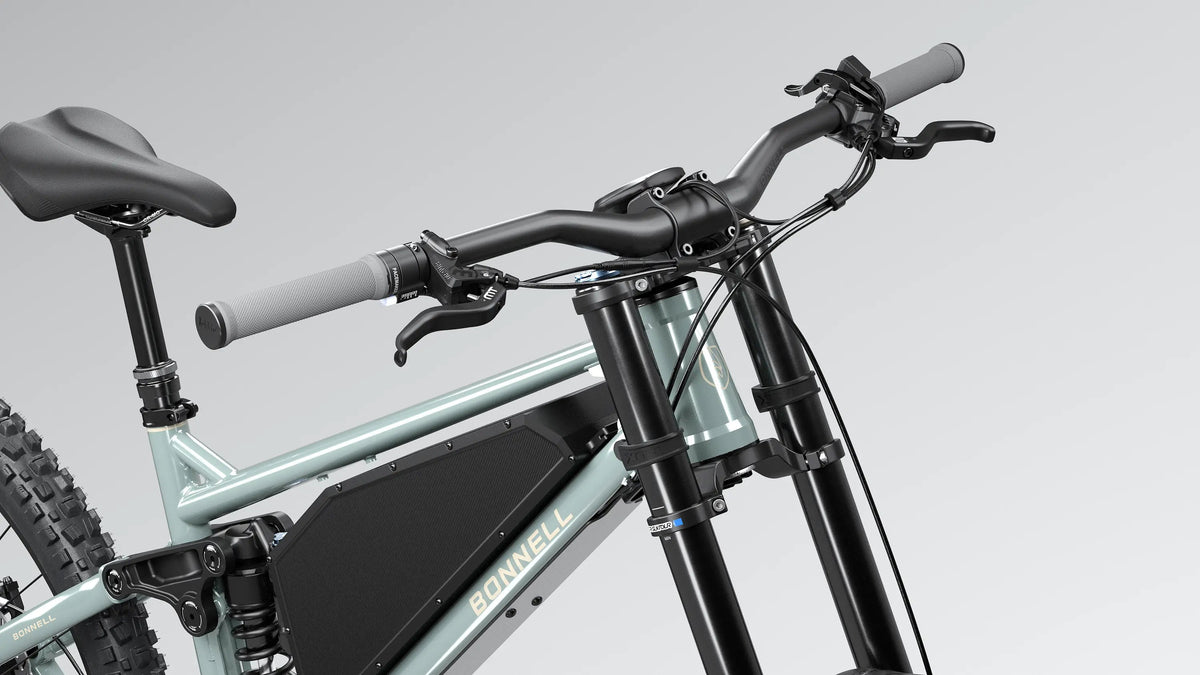

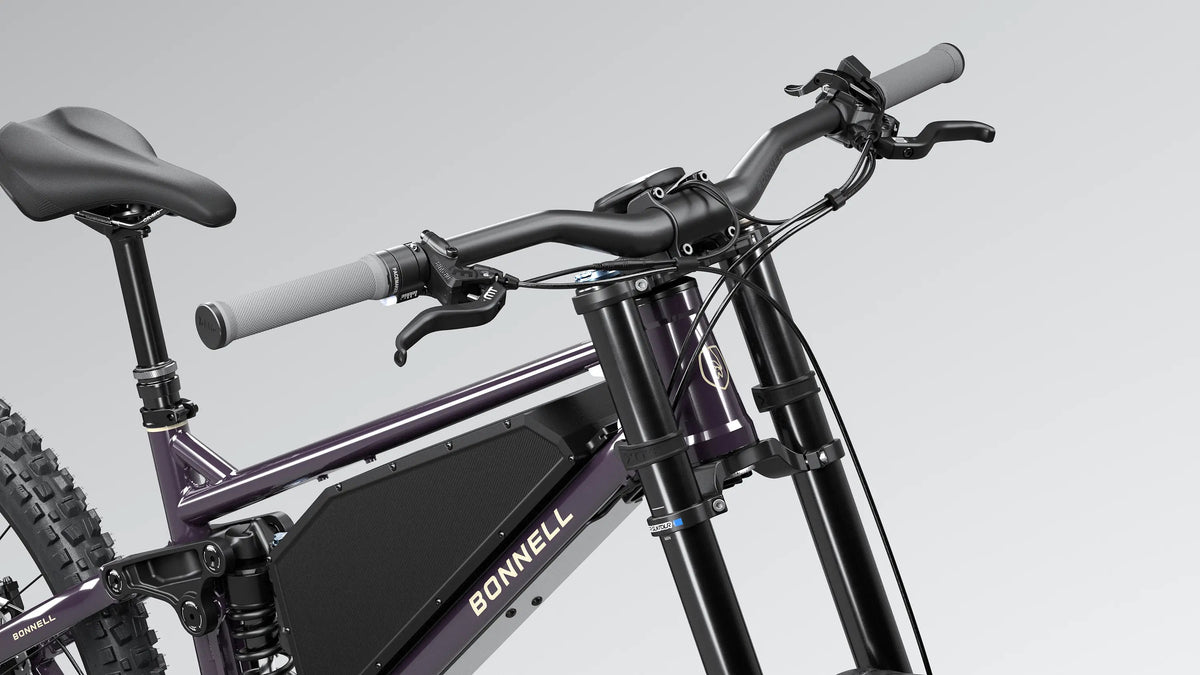

The front suspension is proper downhill equipment.

The Suntour RUX 38 RC+ dual-crown fork provides a substantial 200mm of front suspension travel.

Features include:

This gives the 775 MX the suspension capability required for demanding off-road terrain rather than relying on basic recreational e-bike components.

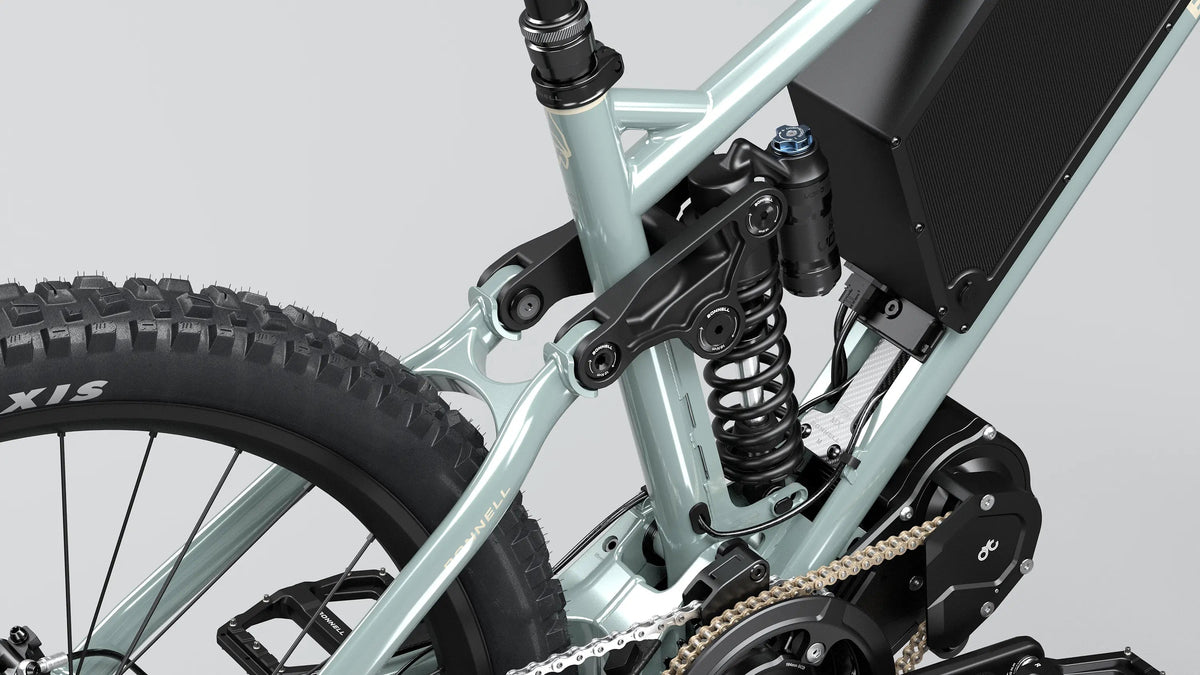

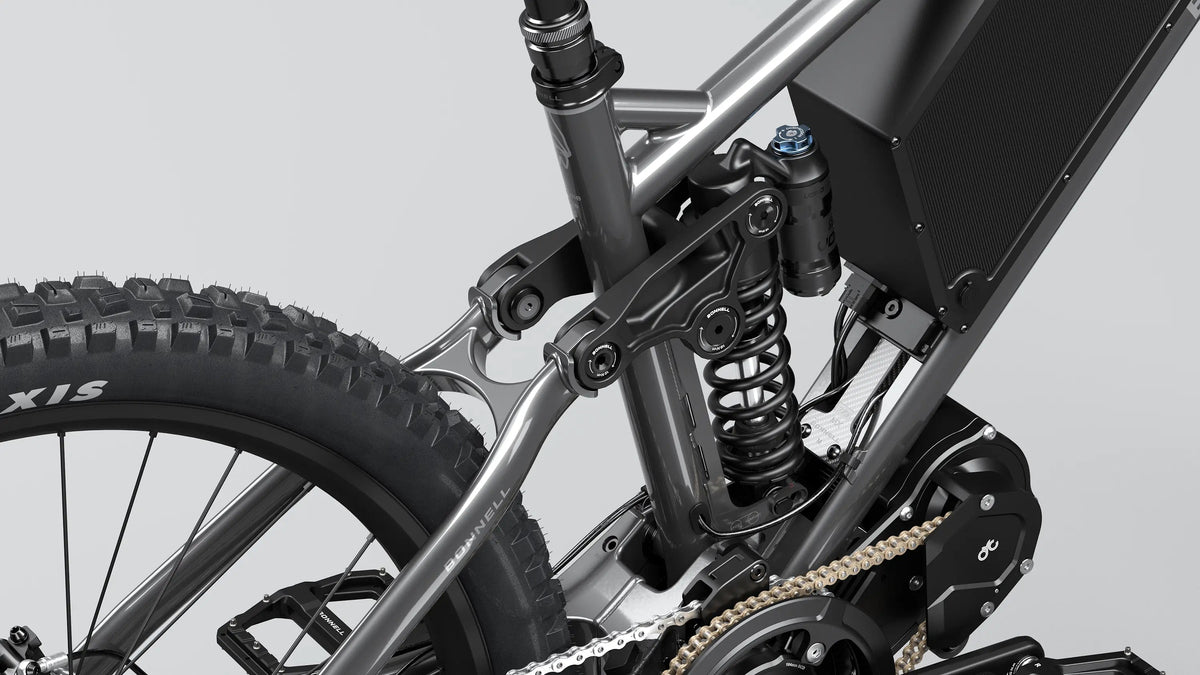

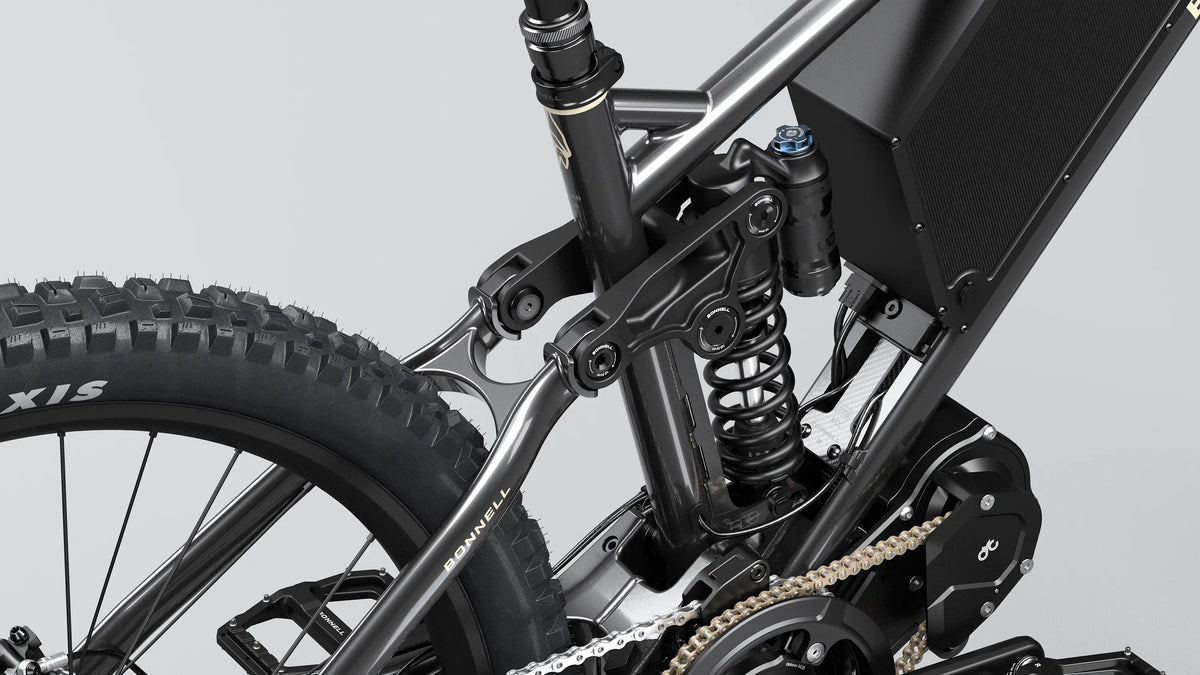

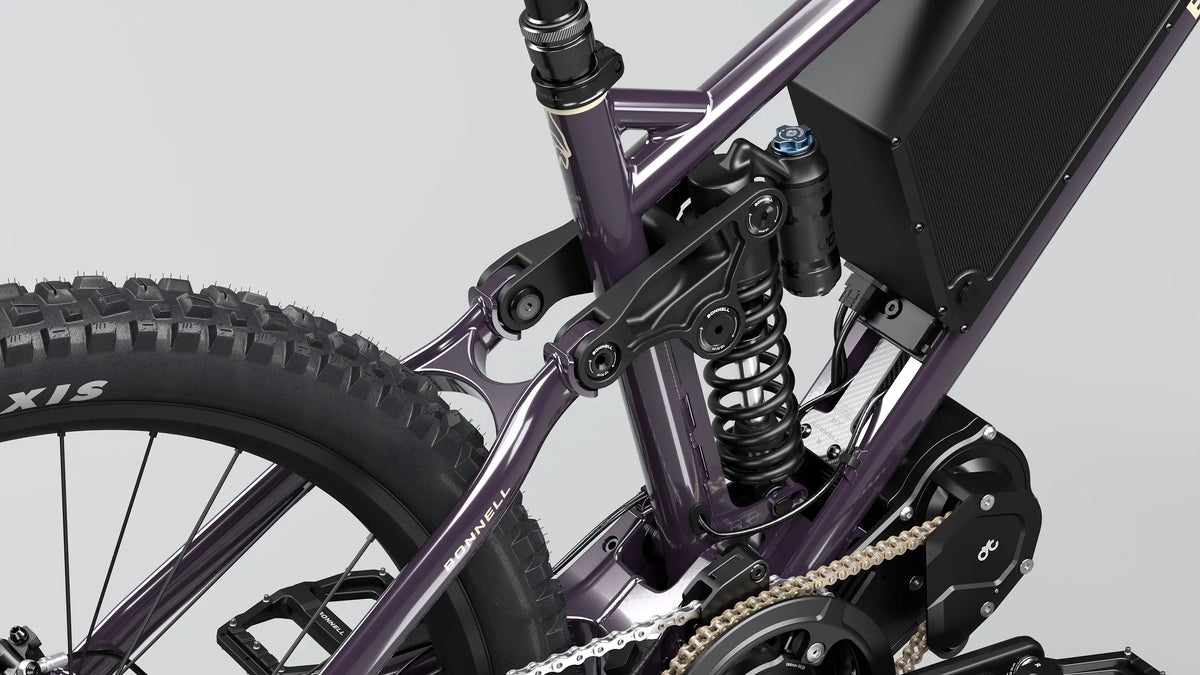

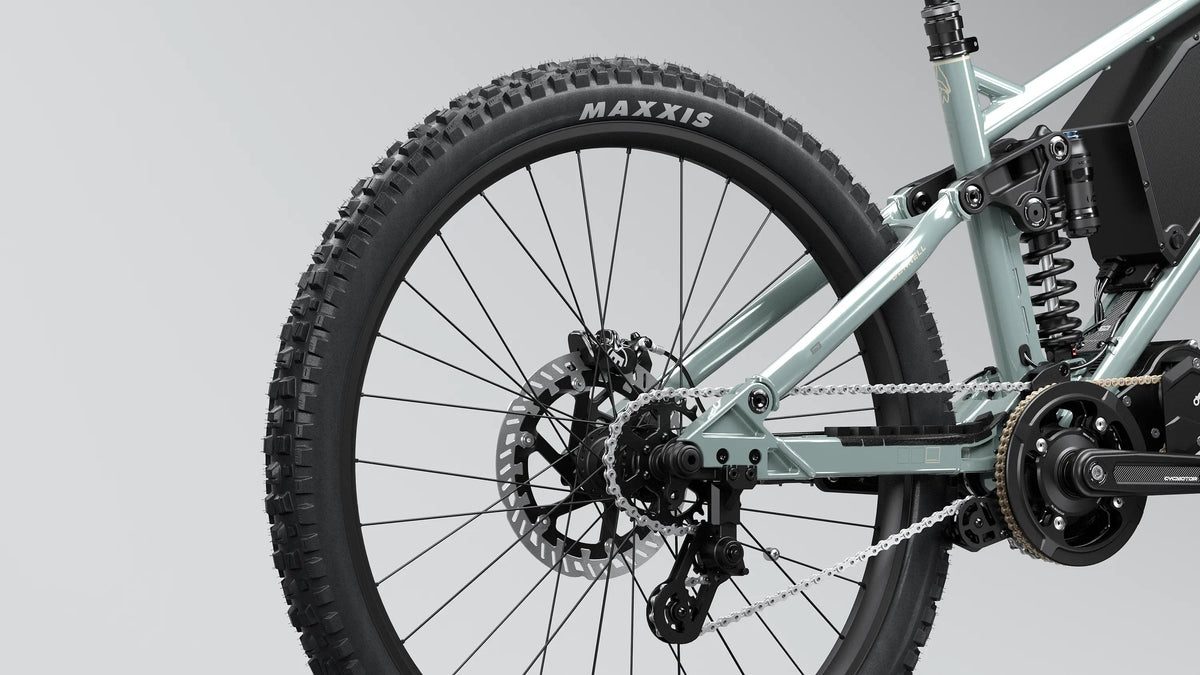

At the rear is a Suntour Voro Coil shock, delivering 170mm of rear-wheel travel.

The suspension provides adjustment for compression and rebound, allowing the bike to be tuned according to rider preference and terrain.

Different spring rates are supplied according to frame size, while the chassis also provides Comfort and Sport shock mounting positions for further setup adjustment.

With up to 6,000W available, strong braking performance is essential.

The Bonnell 775 MX uses Magura MT5 four-piston hydraulic disc brakes. These are paired with large rotors:

The system provides the stopping performance expected from a serious downhill/off-road machine.

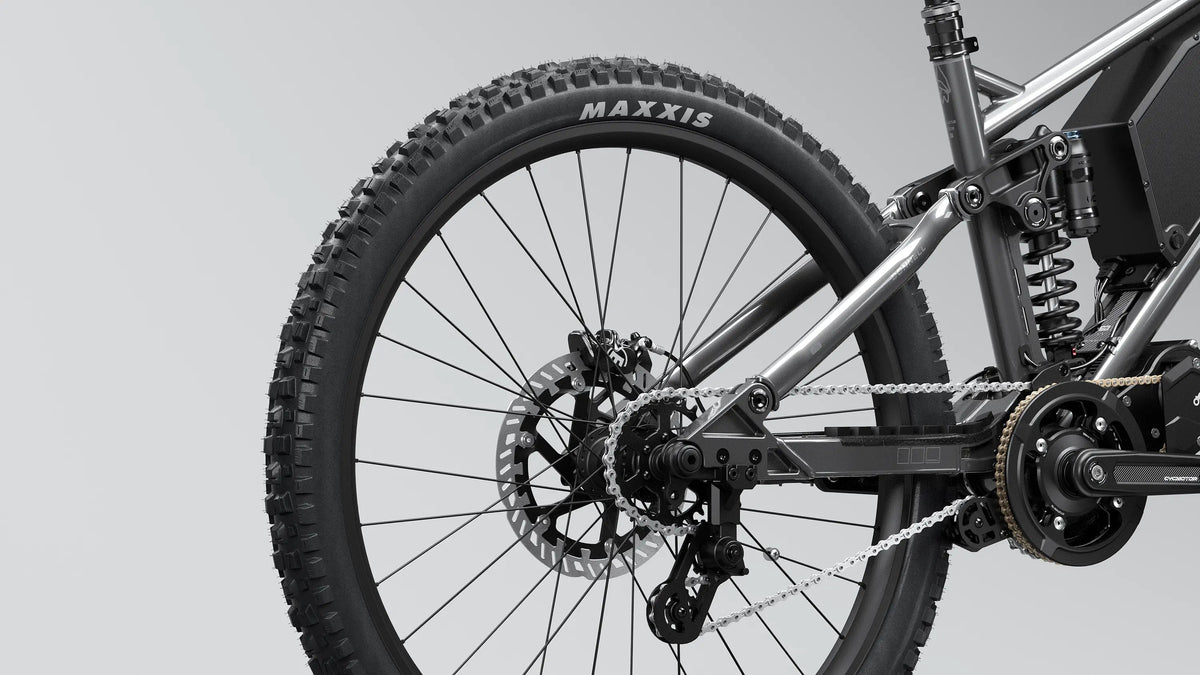

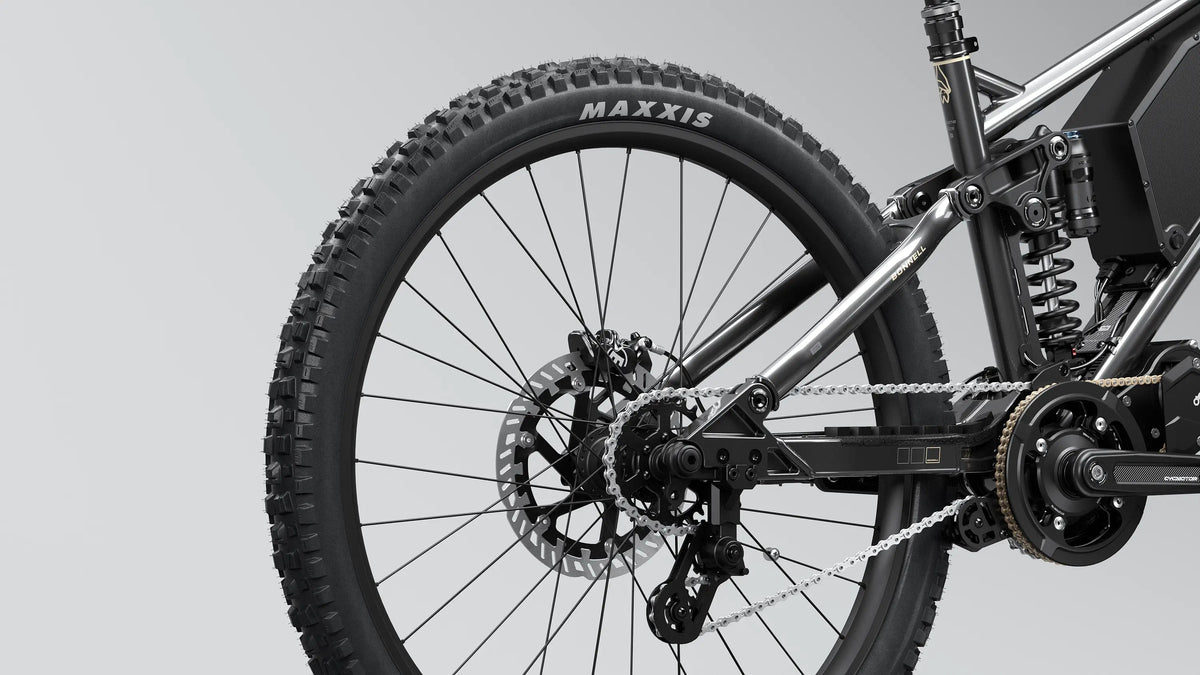

The Bonnell 775 MX uses a modern mullet wheel configuration:

The larger front wheel helps with rollover and stability over rough terrain, while the smaller rear helps maintain a more agile and responsive rear end.

Both ends use 2.5-inch Maxxis Assegai tyres with DH casing and MaxxGrip compound. A Tannus Armour insert is also fitted to the rear wheel for additional rim and puncture protection.

The 775 MX can be connected to the Bonnell Ride Control App using Bluetooth.

Compatible settings and information include power modes, pedal-assist behaviour and aspects of the throttle and torque-sensor response.

The app can also display information including:

The app is available for compatible iPhone and Android devices.

The integrated CYC Intuition display gives riders important information directly from the cockpit.

Information includes speed, battery level, riding mode and performance data. This provides the rider with a clean and modern interface without needing to rely entirely on a connected smartphone.

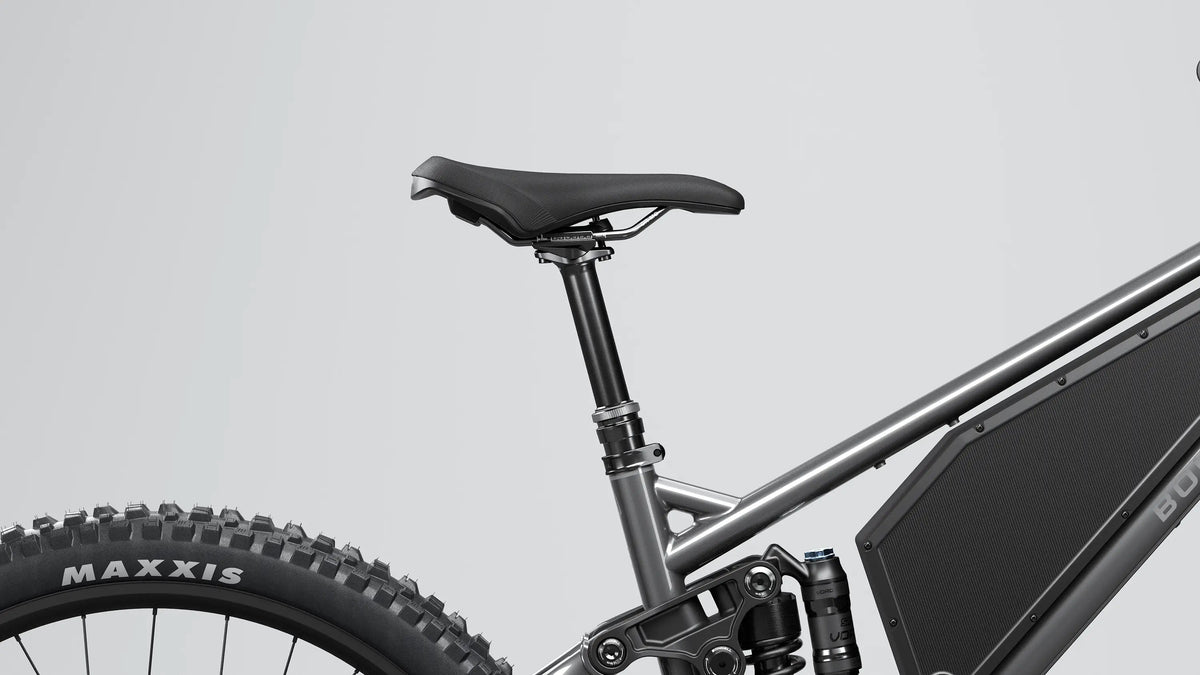

The Bonnell 775 MX chassis has been designed around demanding riding.

Its construction combines a 4130 chromoly front triangle with aluminium rear chassis components, while sealed suspension bearings, reinforced wheel components and adjustable dropouts contribute to a platform built around performance.

The result is a bike that sits somewhere between the worlds of high-performance downhill mountain biking and lightweight electric dirt bikes.

The Bonnell 775 MX is available in Medium, Large and XL frame sizes.

Choosing the correct size isn’t simply about rider height. Different riders may prefer a slightly smaller frame for a more playful and responsive feel, or a larger frame for additional stability at high speeds.

If you’re unsure which Bonnell 775 MX size best fits your riding style, please reach out to our team or visit the Patriot Bikes Wakefield showroom to speak with an expert.
